Name: Carbon Fiber Sheet & Plate (Custom CNC Cut)
Brand: Doolike
SKU: DOOLIKE-CF-SHEET
Availability: InStock

Question 1

What carbon fiber sheet thicknesses and sizes can you make?

Accepted Answer

Solid carbon fiber laminate sheets are available from about 0.5 mm to 20 mm thick, in sheet sizes up to roughly 1000 x 2000 mm. Thicker structures are achieved with foam or honeycomb cored panels. We cut your final parts to size from these sheets, so there is no need to design around stock dimensions.

Question 2

Can you CNC cut carbon fiber plates to my drawing?

Accepted Answer

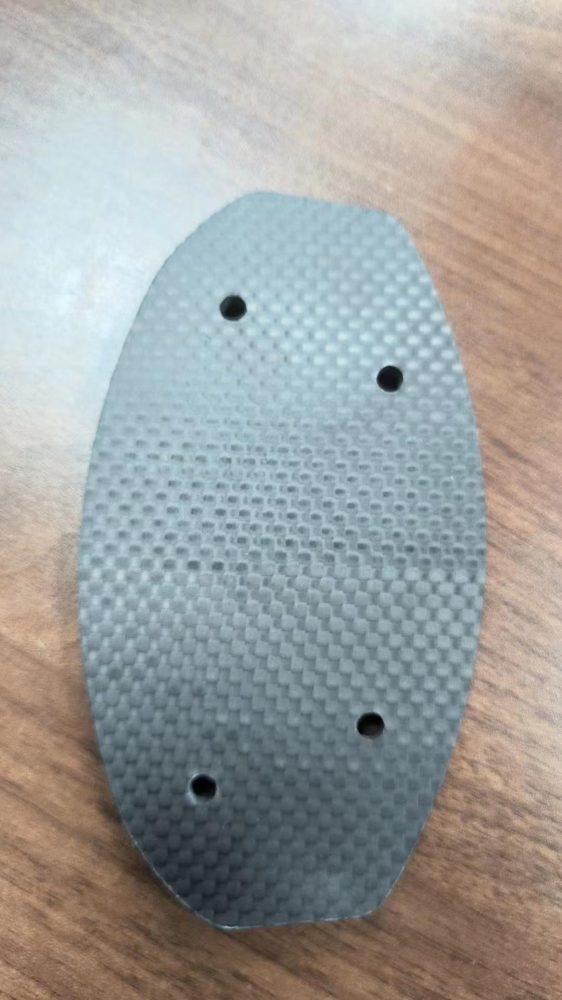

Yes. Send a DXF, DWG or STEP file and we CNC rout, drill, chamfer and pocket the plate to your exact geometry, including holes, slots, countersinks and engraved markings. We hold tight edge tolerances and seal cut edges to prevent fraying. You receive finished parts, not just raw sheet.

Question 3

What is the difference between solid laminate and cored (sandwich) carbon fiber panels?

Accepted Answer

Solid laminate plates are 100% carbon/epoxy — maximum stiffness and strength per unit thickness, best for structural brackets and load-bearing parts. Cored panels sandwich a lightweight foam or aluminum honeycomb core between thin carbon skins — dramatically higher bending stiffness at much lower weight, ideal for large flat panels, drone decks and enclosures.

Question 4

What weave and surface finishes are available for sheets?

Accepted Answer

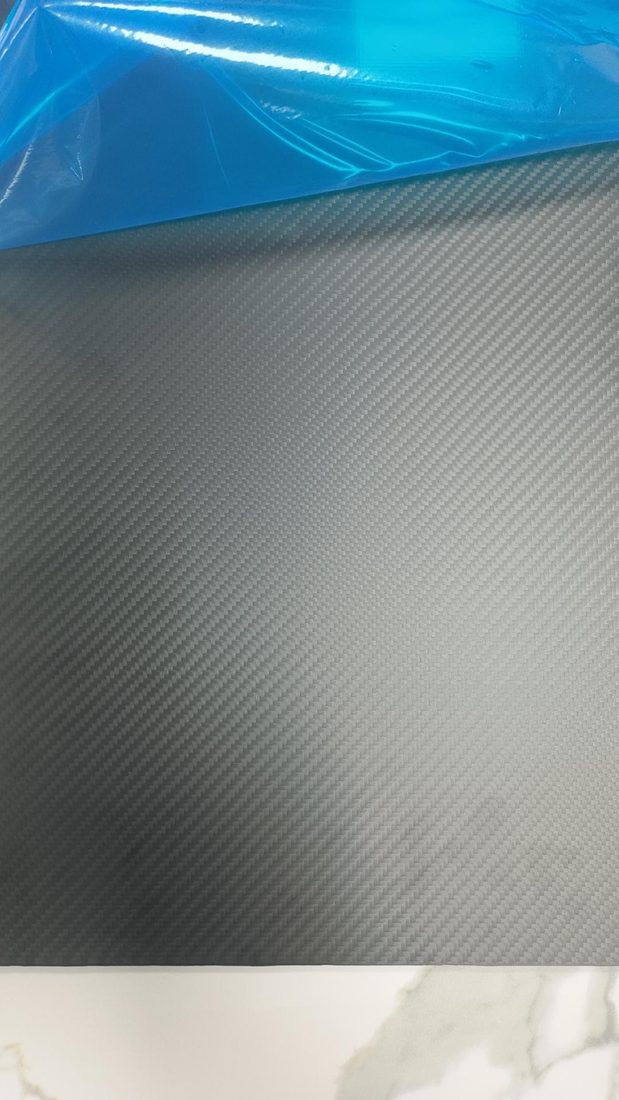

Top-surface options include 3K twill, plain weave and unidirectional (UD), in glossy or matte clear-coat finish. The surface ply is cosmetic; the internal layup (including UD layers for directional stiffness) is engineered separately to meet your mechanical targets.

Question 5

What tolerances can you hold on machined carbon fiber plates?

Accepted Answer

Typical CNC edge and hole tolerances are ±0.05–0.1 mm, with thickness tolerance depending on the laminate. For mating or precision-fit parts we can hold tighter tolerances on critical features — note them on your drawing and we will confirm.

Question 6

What industries use custom carbon fiber sheets and plates?

Accepted Answer

Drone frames and decks, robotics and automation brackets, automotive and motorsport components, medical imaging tables and panels (X-ray transparent), industrial machine parts, RC models and sporting goods — anywhere a stiff, light, dimensionally stable flat part is needed.

Question 7

What is the MOQ and lead time for custom carbon fiber plates?

Accepted Answer

CNC-cut parts can be made from one piece for prototypes; pricing improves with quantity. Lead time for cutting from stock laminate is typically 1–2 weeks; custom-layup sheets add curing time. Send your drawing and quantity to Innerk@doolike.cn for an exact quote and schedule.

Parameter	Range / Options
Thickness (solid)	0.5 – 20 mm
Max Sheet Size	up to 1000 × 2000 mm
Construction	Solid laminate / Foam core / Honeycomb sandwich
Weave / Surface	Twill / Plain / UD — glossy or matte
Machining	CNC routing, drilling, chamfer, engraving, edge sealing
Edge/Hole Tolerance	±0.05 – ±0.1 mm

Carbon Fiber Sheets & Plates — CNC Cut to Your Drawing

Solid Laminate or Lightweight Cored Panels

Solid Laminate Plate

Cored Sandwich Panel

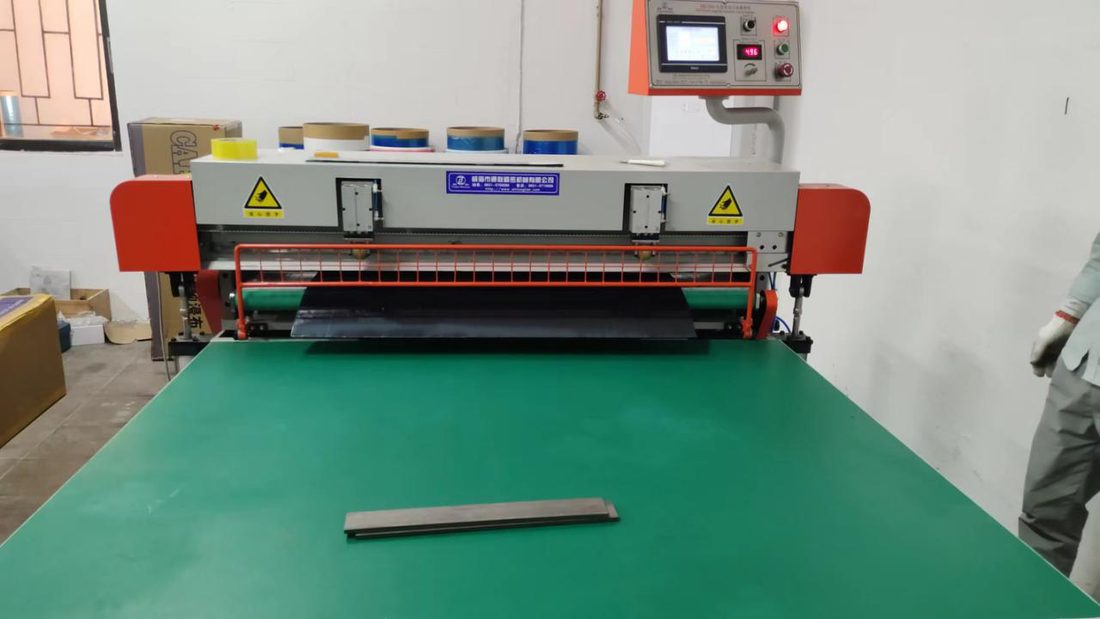

CNC Cut to Drawing

Sheet & Plate Specifications

Where Carbon Fiber Plates Are Used

Carbon Fiber Sheets — Frequently Asked Questions

Send Us Your Plate Drawing
