Name: Carbon Fiber Tube (Round, Square & Custom Profile)
Brand: Doolike
SKU: DOOLIKE-CF-TUBE
Availability: InStock

Question 1

What carbon fiber tube shapes can Doolike manufacture?

Accepted Answer

Doolike produces round, square, rectangular, tapered (conical) and fully custom profile carbon fiber tubes. Round and tapered tubes are typically roll-wrapped over a mandrel; square, rectangular and profile tubes are produced by roll-wrapping or compression molding. We manufacture to your exact outer diameter, inner diameter, wall thickness and length.

Question 2

What is the difference between roll-wrapped and pultruded carbon fiber tubes?

Accepted Answer

Roll-wrapped tubes are made by rolling prepreg sheets around a mandrel and curing under heat and pressure — they offer the best strength-to-weight ratio, customizable wall layups and a premium 3K twill or plain surface. Pultruded tubes are made by pulling fibers through a resin bath and die, giving very high straightness, unidirectional stiffness and low cost for long runs. Doolike offers both depending on your stiffness, surface and budget requirements.

Question 3

What weave patterns and surface finishes are available?

Accepted Answer

Surface options include 3K twill, plain weave, unidirectional (UD), cross weave and jacquard patterns (such as football and forged/marble patterns), in glossy or matte finish. Colored and mixed-color weaves (red, blue, yellow, green, silver) are available for branding and decorative applications. The structural layup underneath is independent of the cosmetic surface.

Question 4

What carbon tow sizes (1K, 3K, 12K, 24K) do you use?

Accepted Answer

We work with the full range of carbon tows — 1K, 3K, 6K, 12K, 24K and 48K. 3K is the most common for a fine, high-quality cosmetic weave; larger tows (12K–48K) are more economical for structural layers. Both standard-modulus (T300/T700 class) and high-modulus fibers are available depending on the stiffness target.

Question 5

What are the minimum and maximum sizes for carbon fiber tubes?

Accepted Answer

Typical outer diameters range from about 3 mm to 120 mm, with wall thickness from 0.5 mm to 5 mm and lengths up to roughly 2000 mm per piece (longer by joining). These ranges are guidelines — share your drawing and we will confirm feasibility, tolerance and tooling for your specific tube.

Question 6

Can you CNC machine, cut and bond carbon fiber tubes to finished assemblies?

Accepted Answer

Yes. Beyond the raw tube we provide cut-to-length, CNC machining (holes, slots, end profiles), insert bonding, threaded fittings and tube-to-plate or tube-to-connector bonded assemblies. This lets Doolike deliver a finished, ready-to-install part rather than just stock tube.

Question 7

What is the MOQ and lead time for custom carbon fiber tubes?

Accepted Answer

Sample tubes can be made in small quantities for validation; production MOQ depends on tube size and whether a custom mandrel or mold is required. Standard roll-wrapped tubes have short lead times (typically 1–3 weeks); custom profiles requiring new tooling take longer. Contact Innerk@doolike.cn with your drawing for exact MOQ, tooling and lead time.

Question 8

What industries use Doolike carbon fiber tubes?

Accepted Answer

Carbon fiber tubes are used in drones/UAVs (arms and booms), photography and cinema (camera sliders, jibs, monopods), sports equipment, robotics and automation (lightweight arms and gantries), medical and industrial structures, telescopic poles and yacht/marine hardware — anywhere high stiffness at minimal weight is required.

Parameter	Range	Notes
Outer Diameter (round)	3 – 120 mm	Custom OD on request
Wall Thickness	0.5 – 5 mm	Layup tuned to stiffness target
Length	≤ 2000 mm	Longer by bonded joints
Dimensional Tolerance	±0.05 – ±0.1 mm	Tighter with ground/CNC finish
Process	Roll wrapping / Pultrusion / Molding	Chosen by shape & volume
Secondary Machining	CNC, cutting, bonding, inserts	Finished assemblies available

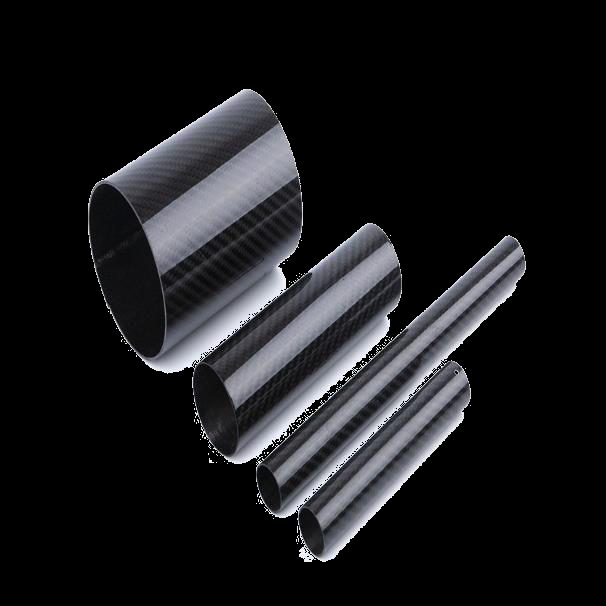

Carbon Fiber Tubes — Round, Square & Custom Profile

Every Tube Geometry, Built to Your Drawing

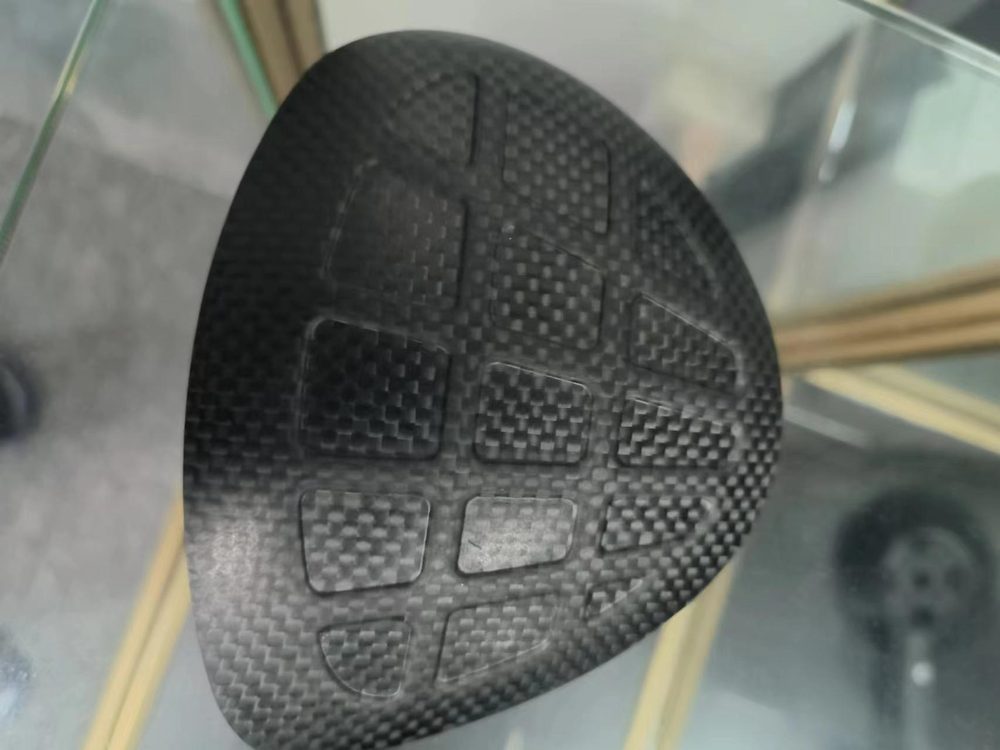

Round Tubes

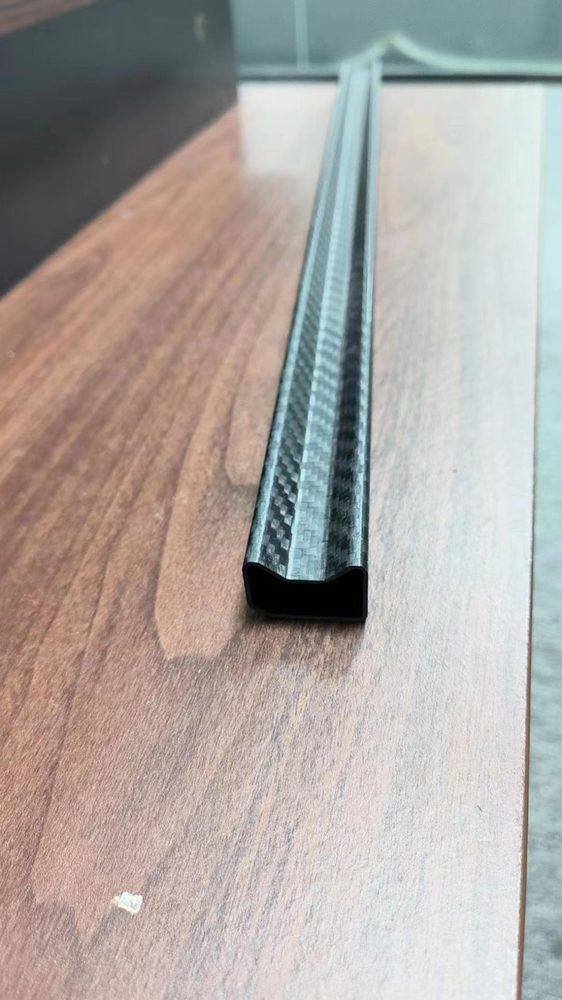

Square & Rectangular

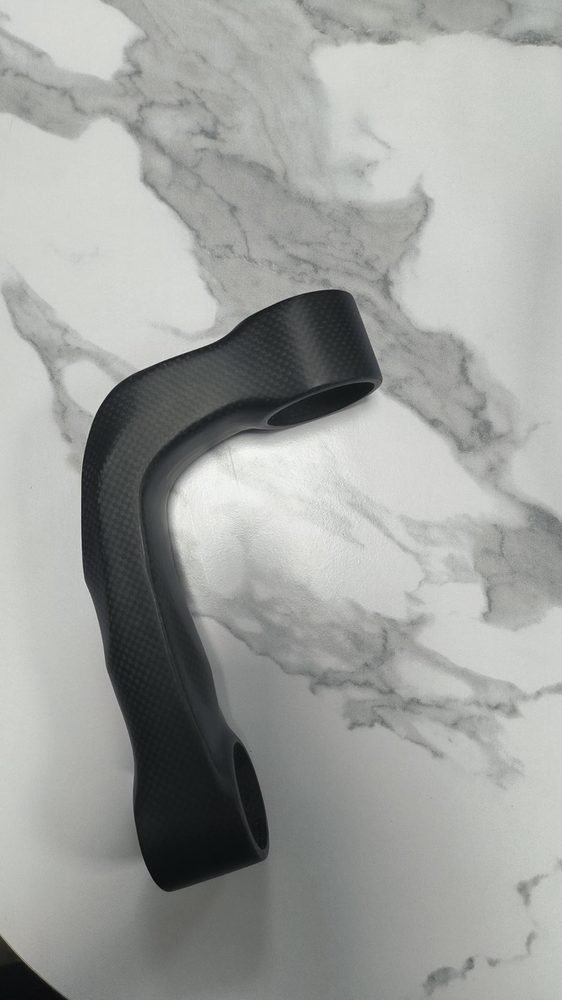

Tapered & Custom Profile

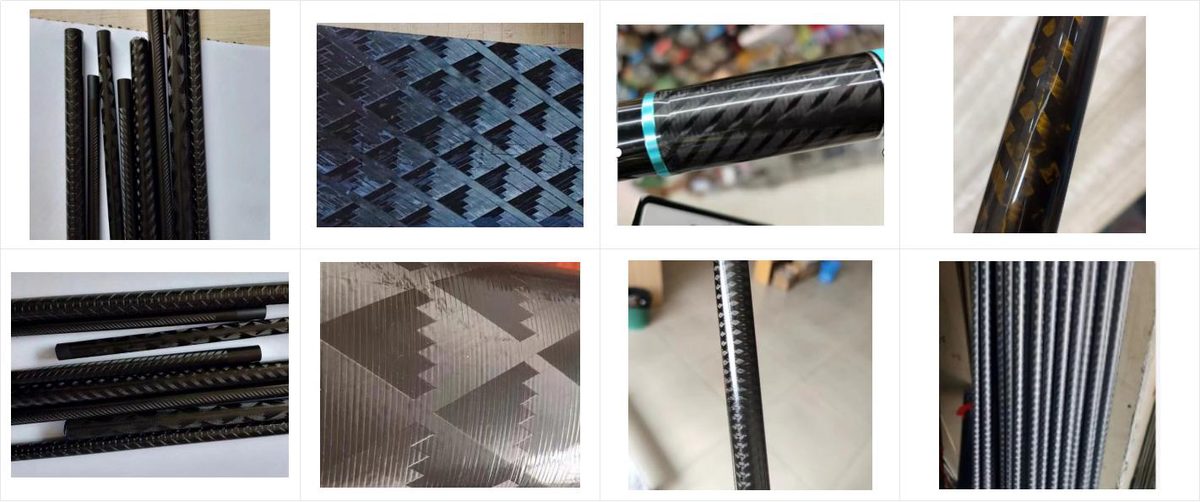

Weave Patterns, Tow Sizes & Surface Finishes

Standard & Custom Tube Specifications

Where Carbon Fiber Tubes Excel

Carbon Fiber Tubes — Frequently Asked Questions

Need a Custom Carbon Fiber Tube?
